| Serial number | Specification | Detailed description |
| 1 | Specifications |

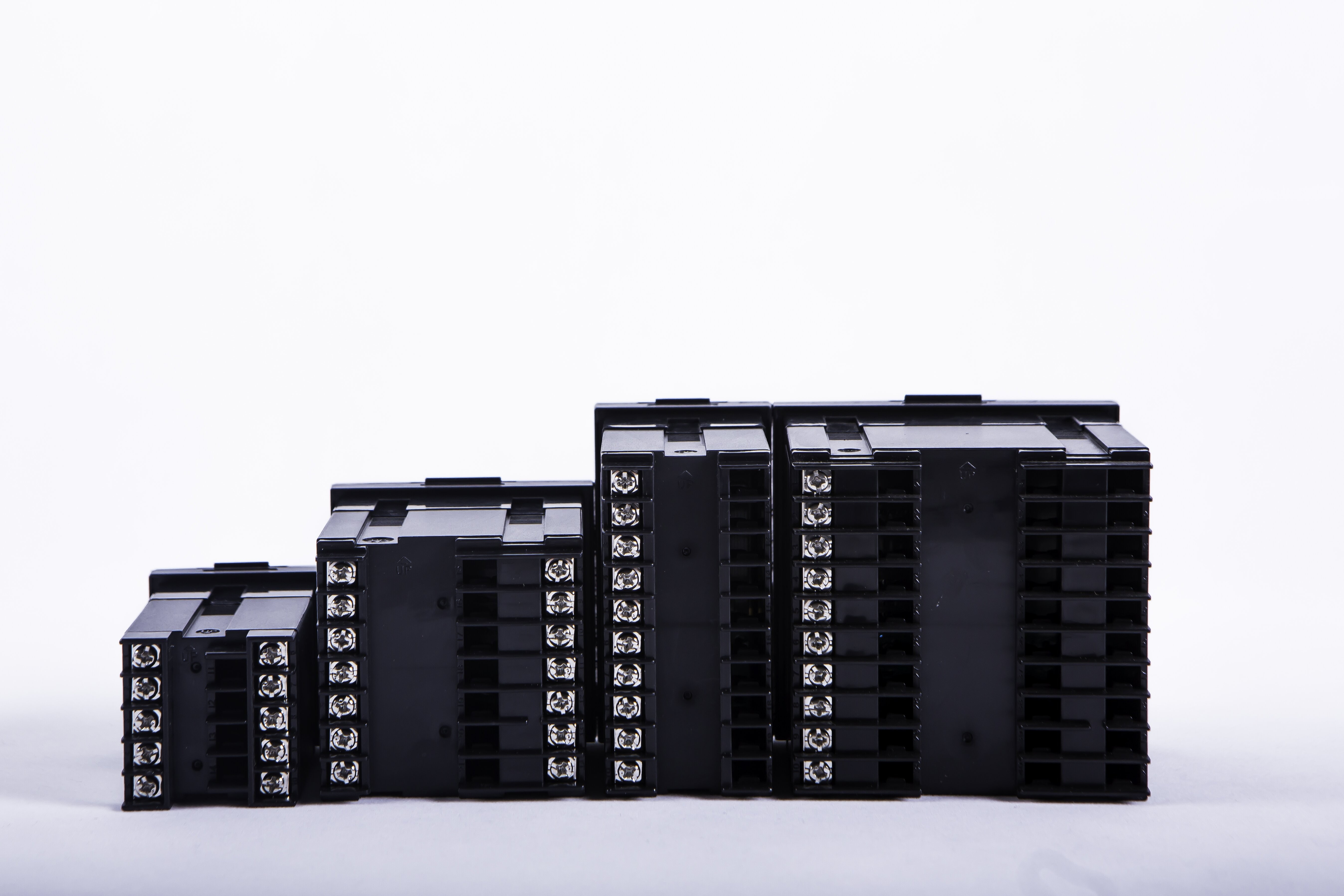

MT100(48*48) 、MT700(72*72) 、 MT400(48*96) 、MT900(96*96) . |
| 2 | Characteristics |
Percentage light column indicator, beautiful appearance, 0.25 measurement accuracy |
| 3 | Function |
Heating, cooling control, transmission output, RS485 communication |
| 4 | Output |
Relay , SSR，SCR, 4-20mA, 0-10V, 1 or 2 way alarm |
| 5 | application scenarios |
Temperature, pressure, humidity and other display and control occasions |
| 6 | Display Screen |

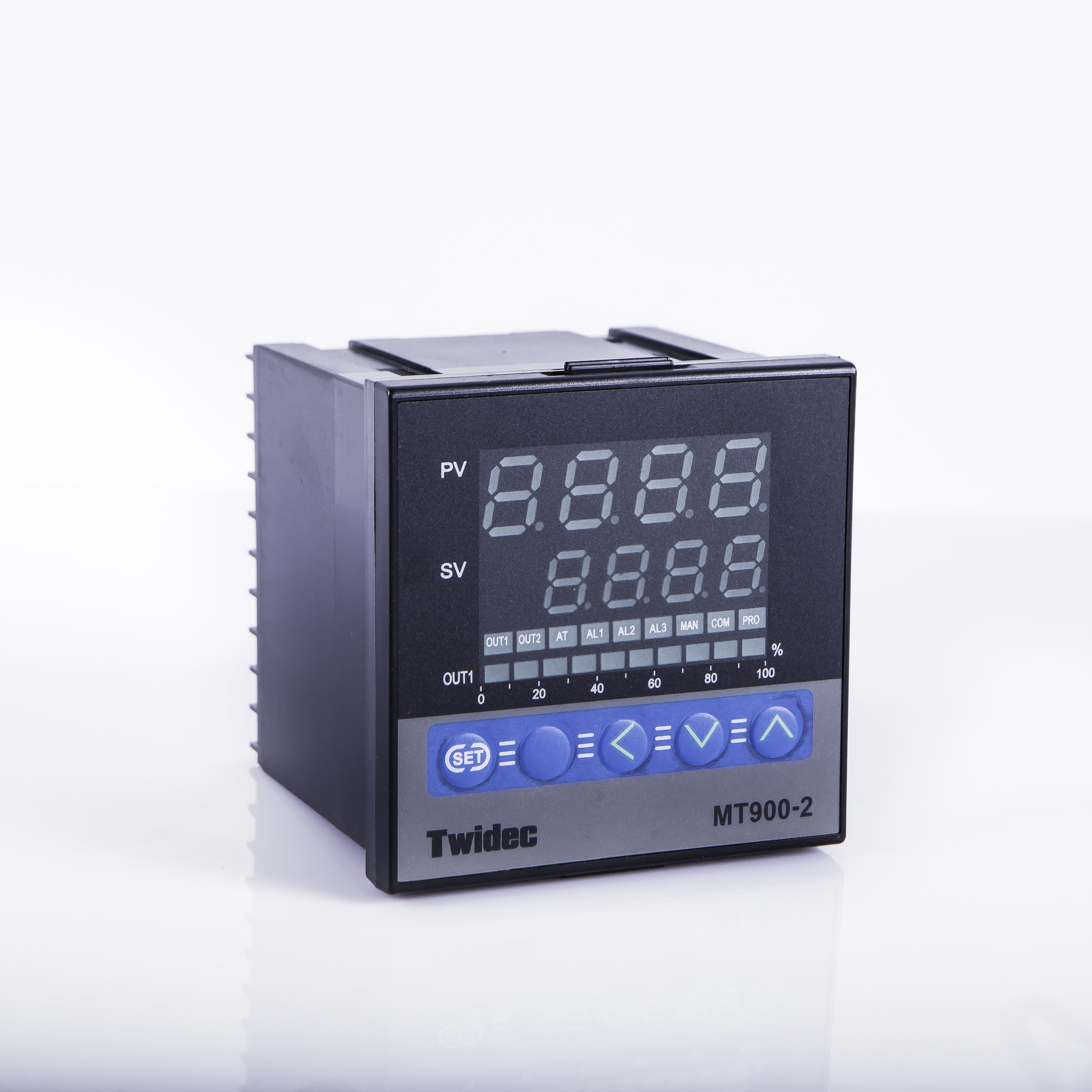

Adoption of a digital tube display with clear and bright colors for a more beautiful display. |
| 7 |
Components |
Adoption of low temperature drift coefficient components, 0.25 grade measurement accuracy |
| 8 |
CPU |
CPU adopts Japan Renesas new industrial-grade chips, Renesas chips are widely used in high-requirement and reliable places. |
| 9 |
Input |
Supports a variety of thermocouple and RTD inputs, as well as linear signals. |
| 10 |
Control arithmetic |
Built-in conductive PID control algorithm, and equipped with a unique anti-overshooting PID control, accurate temperature control |
|
11 |
Communication connection |
RS-485 communication interface, supports MODBUS RTU communication protocol, and master-slave communication is also available between the instruments |
| 12 |
Heating & Cooling Control |
Up to two outputs can be equipped to form heating and cooling control, and up to two alarm outputs can be equipped |
|
|
|

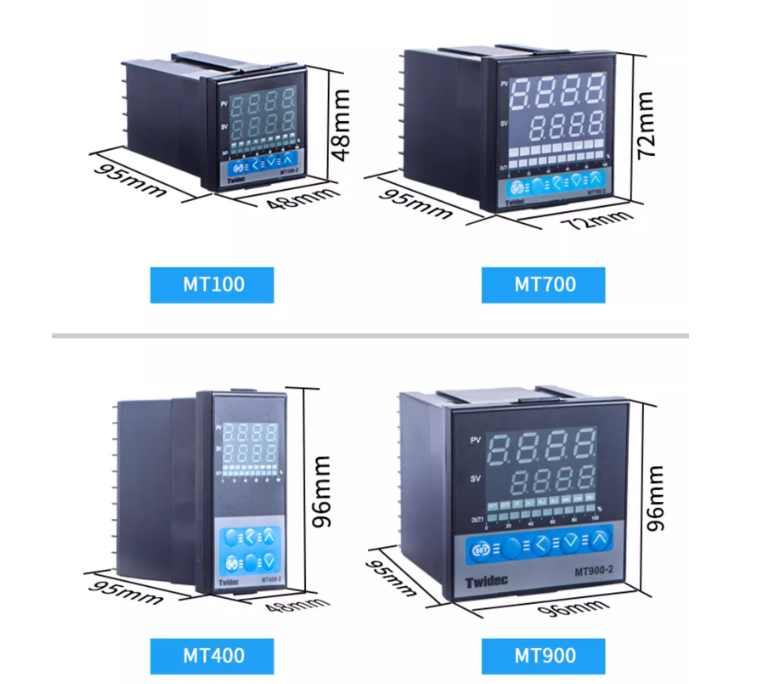

| Product Model | MT100、 MT700、 MT400、 MT900 |
| Panel Dimensions(mm) | 48*48、 72*72 、48*96、 96*96 |
| Cut-Size(mm) | 45*45、 68*68 、45*92 、92*92 |
| Measurement accuracy | （Max±0.3%fus or ±1）≤±1dight |
| Input signal | Thermocouple / Thermo resisitance / Linear Signal |
| Output signal | Relay, SSR，SCR, 4-20mA, 0-10V |
| control method | PID auto control |
