Thyristor module element MT

Thyristor module element MT

MT Thyristor Semiconductor Module is the abbreviation of Thyristor Rectifier Element, which is a high-power semiconductor device with three PN junctions in a four-layer structure, generally consisting of two thyristors connected in reverse. Its function is not only rectification. It can also be used as a non-contact switch to quickly turn on or off the circuit. Realize the direct current into alternating current inverter. One frequency of alternating current into another frequency of alternating current.


Technology selection

Specifications mean on state current VDRM surge current VTM IDRM trigger current trigger voltage crust thermal resistance
A V A V mA mA V ℃/W
MTC60GK16 60 1800 1600 ≤1.5 ≤3 30~100 0.5~2 0.54
MFC60GK16 60 1800 1600 ≤1.5 ≤3 30~100 0.5~2 0.54
MTC60GK16 100 1800 1600 ≤1.5 ≤3 30~100 0.5~2 0.4
MFC60GK16 100 1800 1800 ≤1.5 ≤3 30~100 0.5~2 0.4
MTC60GK16 125 1800 2300 ≤1.5 ≤3 30~100 0.5~2 0.25
MFC60GK16 125 1800 2300 ≤1.5 ≤3 30~100 0.5~2 0.25
MTC60GK16 175 1800 4000 ≤1.5 ≤5 30~100 0.5~2 0.18
MFC60GK16 175 1800 4000 ≤1.5 ≤5 30~100 0.5~2 0.18
MTC60GK16 200 1800 7200 ≤1.8 ≤5 30~100 0.5~2 0.14
MFC60GK16 200 1800 7200 ≤1.8 ≤5 30~100 0.5~2 0.14
MTC60GK16 250 1800 8500 ≤1.8 ≤10 30~100 0.5~2 0.12
MFC60GK16 250 1800 8500 ≤1.8 ≤10 30~100 0.5~2 0.12
MTC60GK16 300 1800 9200 ≤1.8 ≤10 30~100 0.5~2 0.1
MFC60GK16 300 1800 9200 ≤1.8 ≤10 30~100 0.5~2 0.1
MTC60GK16 400 1800 12600 ≤2 ≤20 30~100 0.5~2 0.082
MFC60GK16 400 1800 12600 ≤2 ≤20 30~100 0.5~2 0.082

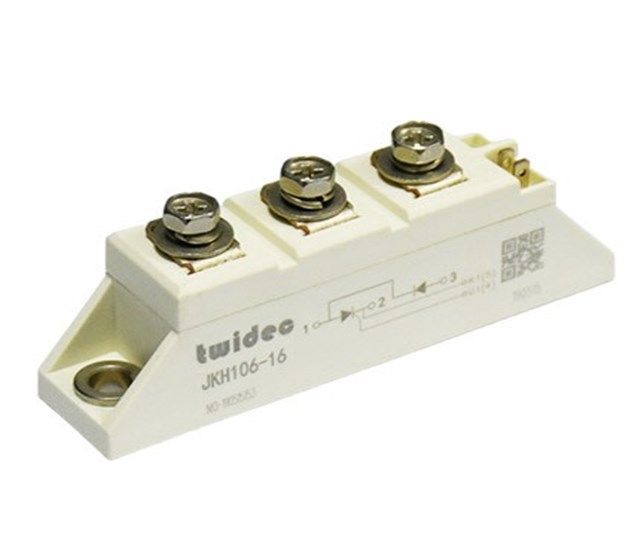

Product display
