Technology selection
| SPECIFICATION | |
| Technology selection | TC-60/80/100/120/150/200/300/400DA |
| Maximum load current | 60A、80A、100A、120A、150A、200A、300A、400A |
| Control Power Supply | DC4~32V |
| Minimum pulse width for controlling power supply current | 500us |
| IDRM | 0.5~2mA |
| VTM | 1.5Vmax |
| Holding current | 20~70mA |
| Zero-Voltage- Transition | ±15V(PEAK) |
| On-off current | 20us(max) |
| Insulation resistance | 1000MΩ/500Vdc |
| Insulation voltage | >2000V |
| Action state | High brightness red LED |
| Protection grade | IP67 |
Product introduction
| Imported chips: The whole system adopts imported chips, stronger current-carrying, more exquisite appearance, longer life. |
 |
|
Comprehensive product specifications: 25A-120A DC control DC, DC control AC. |
|
|
Product selection: single-phase resistive load selection = power/voltage/50%, three-phase resistive load selection = power/voltage/50% die welding. |
|
|
|
|
|
|
|
|
|

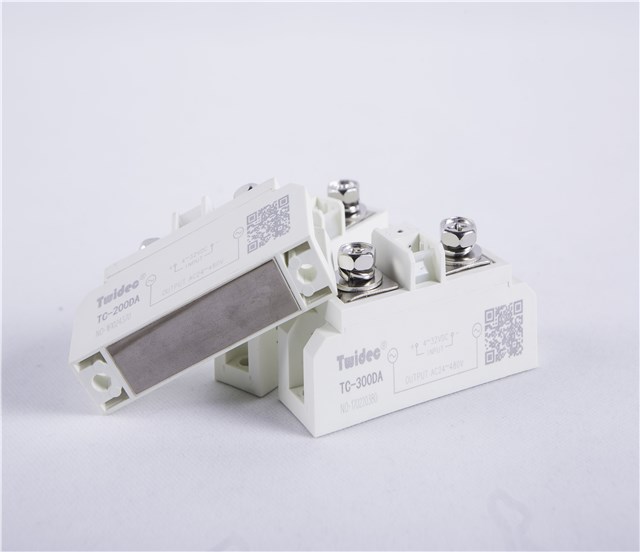

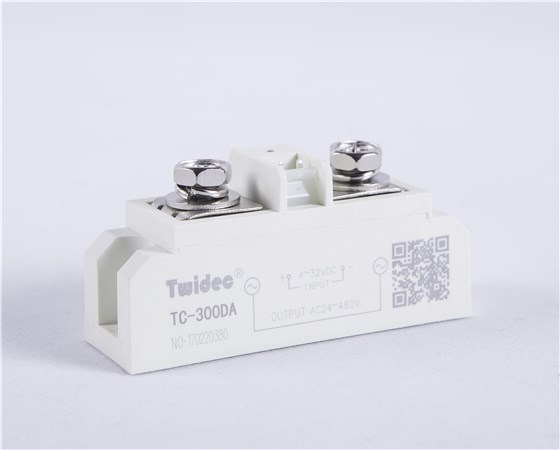

Product display
