Three-phase Automatic Voltage Power Regulator TR CustomizableThree-phase Automatic Voltage Power Regulator TR Customizable

Three-phase Automatic Voltage Power Regulator TR Customizable

Power regulator is also called power regulator is the application of thyristor (also known as silicon controlled) and its trigger control circuit used to adjust the load power disk mounted power adjustment unit. More is the use of digital circuits to trigger the thyristor to realize the voltage and power regulation. Voltage regulator using phase-shift control mode, power regulator has a fixed cycle of power regulation and variable cycle of power regulation in two ways.

Technology selection

Product Characteristic

Specifications Current

Load Power(KW)

Customizable

Appearance Dimensions（MM)

Fixed Dimensions（MM)

Weight(KG）

Screw & Locking Torque Cooling method
220V 380V L W H L W
TR-4-4-030-P 30A 9.5 16.5 190 115 175 91 105 2.3 M6 40kgfcm Free cooling
TR-4-4-040-P 40A 12.5 20 190 115 175 91 105 2.3 M6 40kgfcm Forced cooling
TR-4-4-050-P 50A 15.5 27 250 150 200 150 133 3.9 M6 50kgfcm Forced cooling
TR-4-4-060-P 60A 19 33 250 150 200 150 133 3.9 M6 50kgfcm Forced cooling
TR-4-4-070-P 70A 23.5 41 250 150 200 150 133 3.9 M6 70kgfcm Forced cooling
TR-4-4-080-P 80A 25.5 44 250 150 200 150 133 3.9 M6 75kgfcm Forced cooling
TR-4-4-090-P 90A 28.5 49 250 150 200 150 133 3.9 M6 85kgfcm Forced cooling
TR-4-4-100-P 100A 32 55 250 150 200 150 133 3.9 M6 85kgfcm Forced cooling
TR-4-4-125-P 125A 40 68.5 290 150 200 171 133 5.1 M6 95kgfcm Forced cooling
TR-4-4-150-P 150A 45 75 340 150 200 171 133 5.7 M8 170kgfcm Forced cooling
TR-4-4-175-P 175A 53 88 340 150 200 171 133 5.7 M8 200kgfcm Forced cooling
TR-4-4-200-P 200A 58 100 340 150 200 171 133 5.7 M8 220kgfcm Forced cooling

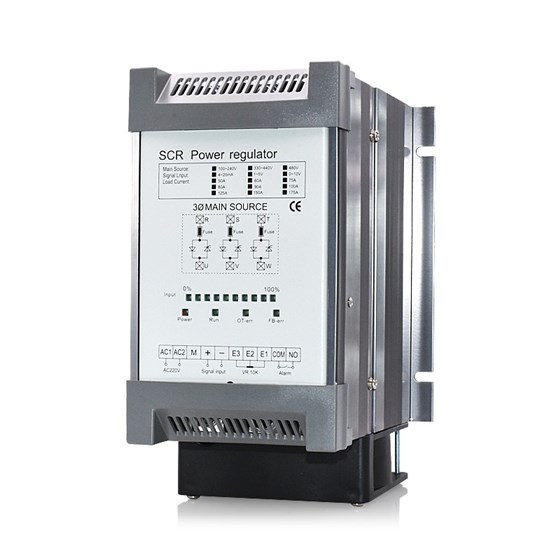

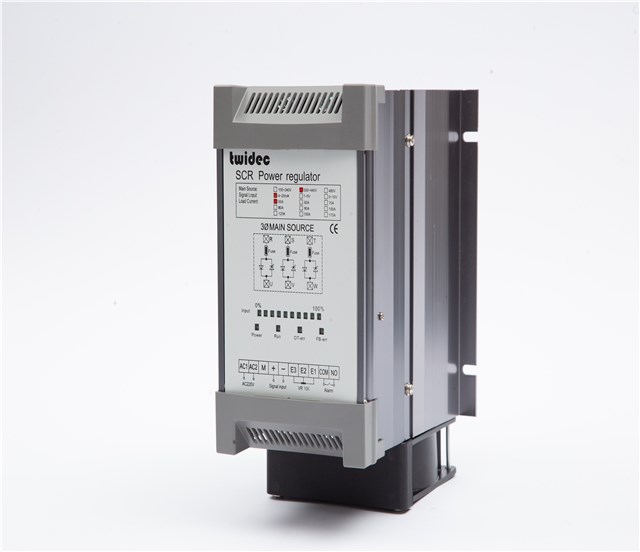

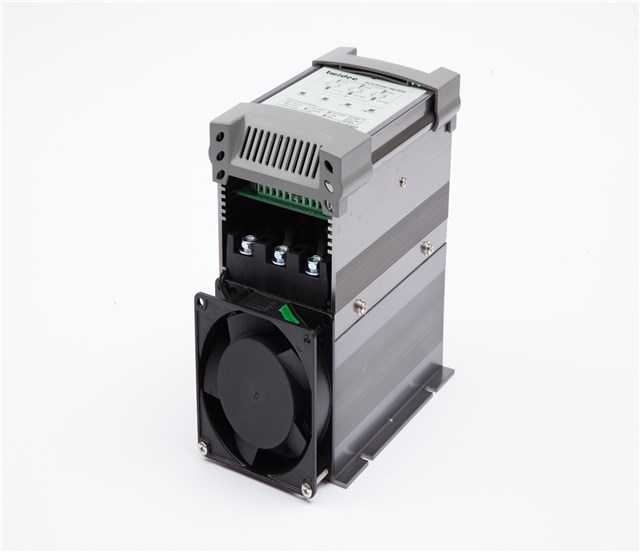

Product display
