Technology selection
| Serial number | argument | Detailed description |

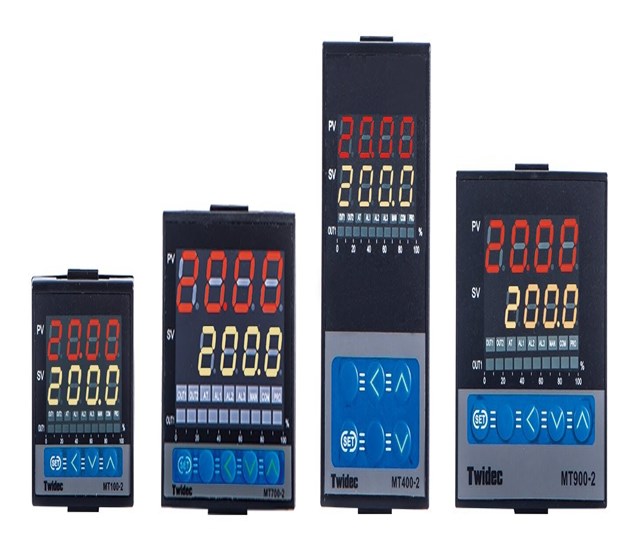

| 1 | Specifications | MT100(48*48)、MT700(72*72)、MT400(48*96)、MT900(96*96) |
| 2 | Characteristics | Percentage light column indicator, beautiful appearance,0.25 measurement accuracy |
| 3 | Function | Heating, cooling control, transmission output, RS485 communication |
| 4 | Output | Relay , SSR，SCR, 4-20mA, 0-10V, 1 or 2 way alarm |
| 5 | application scenarios |
Temperature, pressure, humidity and other display and control occasions |
| 6 |
Display Screen |
Adoption of a digital tube display with clear and bright colors for a more beautiful display. |
| 7 |
Components |
Adoption of low temperature drift coefficient components, 0.2 grade measurement accuracy |
| 8 |
CPU |
CPU adopts Japan Renesas new industrial-grade chips, Renesas chips are widely used in high-requirement and reliable places. |
| 9 |
Input |
Supports a variety of thermocouple and RTD inputs, as well as linear signals. |
| 10 |
Control arithmetic |
Built-in conductive PID control algorithm, and equipped with a unique anti-overshooting PID control, accurate temperature control |
|
11 |
Communication connection |
RS-485 communication interface, supports MODBUS RTU communication protocol, and master-slave communication is also available between the instruments |
| 12 |
Heating & Cooling Control |
Up to two outputs can be equipped to form heating and cooling control, and up to two alarm outputs can be equipped |

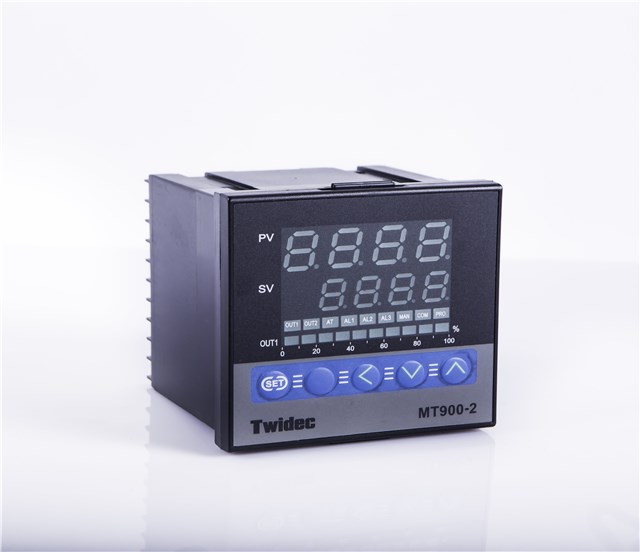

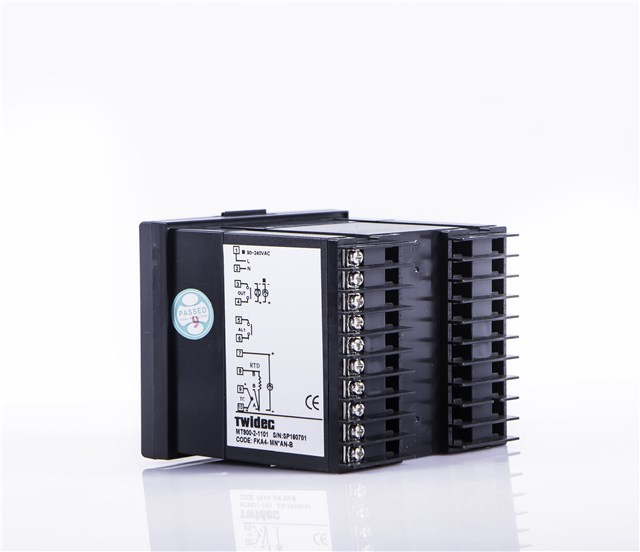

Product display
