Spring-loaded thermocouple
The pressure spring thermal resistance is mainly used for mold temperature measurement of various equipment. The product adopts imported first-level precision temperature measurement wire, the core body adopts German Horace A-class and AA class chip, and the tube body adopts stainless steel and copper material, which ensures good temperature measurement accuracy and service life. Mainly applicable to plastic machinery, automation equipment, packaging and printing machinery, food machinery and other equipment and environmental temperature measurement field
Technical parameter
|
Serial number
|
argument
|
Detailed description
|
|
1
|
TC
|
Base code
|
|
2
|
Graduated mark
|
PT100、PT1000
|
|
3
|
precision
|
Class A, Class B, Class 2B, Class AA
|
|
4
|
Service temperature
|
-50-200℃、0-400℃、0-600℃
|
|
5
|
Probe requirement
|
5×30、5×40、5×50、5×60、5×70
|
|
6
|
Thread specification
|
M12*1.5、M8*1.25
|
|
7
|
Lead specification
|
High temperature shielding wire, glass fiber, Teflon
|
|
8
|
Length of lead
|
1m、1.5m、2m、3m……..10m
|
|
9
|
Terminal requirements
|
U-shaped fork, straight pin terminal, no terminal, aviation plug
|

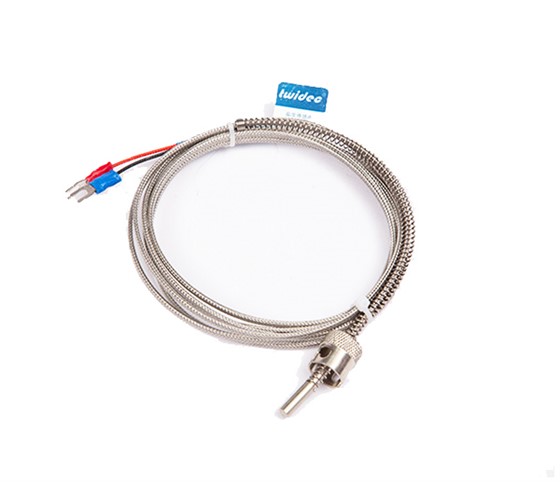

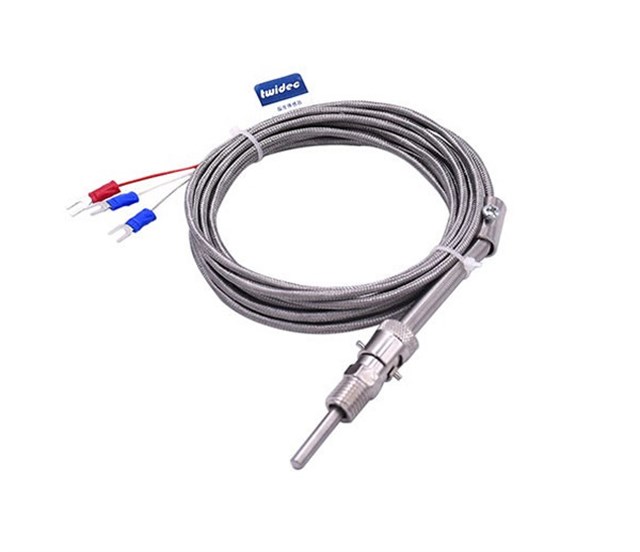

Product display
