Spring-loaded thermocouple

Spring-loaded thermocouple

Thermocouple is a temperature measuring element commonly used in temperature measuring instruments, which directly measures the temperature, and converts the temperature signal into the thermoelectric motive force signal, and converts the temperature of the measured medium through the electrical instrument (secondary instrument).

Technology selection

Serial number argument Detailed description
1 TC Base code
2 Graduated mark K, E, J, N, and T are optional
3 precision Level 1, Level 2
4 Service temperature 0-200℃、0-400℃、0-600℃
5 Thread specification M12*1.5、M10*1、M10*1.5、M8*1.25
6 Lead specification Shielding wire, glass fiber, Teflon, multi-strand shielding
7 Length of lead 1m、1.5m、2m、3m……..10m
8 Insulating ground Grounded and ungrounded
9 Terminal requirements U-shaped fork, straight pin terminal, no terminal, aviation plug

Product display

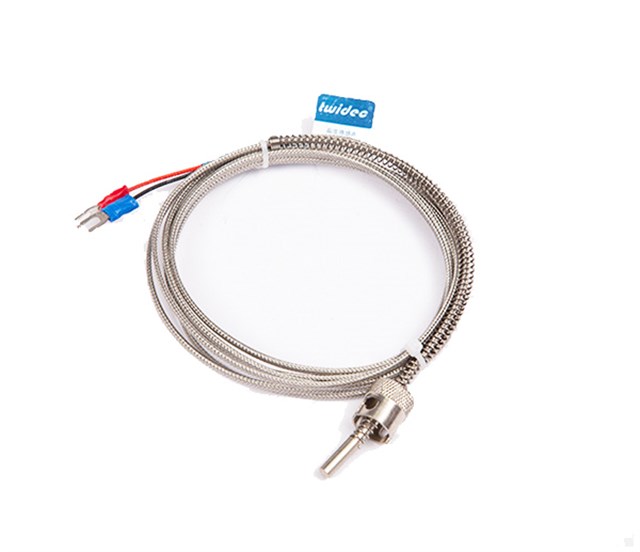

Circlip thermocouple
