Technology selection
| Serial number | argument | Detailed description |
| 1 | TC | Base code |
| 2 | Pipe diameter | 6mm, 8mm, 12mm, 14mm, 16mm,3mm, 4mm, 5mm... |
| 3 | Pipe length | 30mm-100mm-1000mm customizable |
| 4 | Work gauge specifications | 30W, 50W, 100W -- 2000W can be customized |
| 5 | Operating voltage | AC220V, AC380V, AC110V,DC24V, DC48V...... |
| 6 | Normal operating temperature | 100-200℃, 300-450℃, 450-600℃,600-800 ℃...... |
| 7 | Lead length | 0.3m, 0.5m, 1m -- 5m |
| 8 | With thermocouple | With type K thermocouple, with PT100 thermal resistance |
| 9 | Terminal requirements | U-shaped fork, straight pin terminal, no terminal, aviation plug |
Technical parameter
| item | data |
| Power error | +5%~10% |
| Diameter tolerance | -0.06%~+0.04% |
| Length tolerance | ±1% |
| Voltage resistance value | 1600V/3s |
| Insulation resistance | >400MQ |
| Non-heating length | 3~10mm |
Service heating tube
-
- φ5 Small electric heating tube
-
- Packaging machine single head electric heat pipe
-

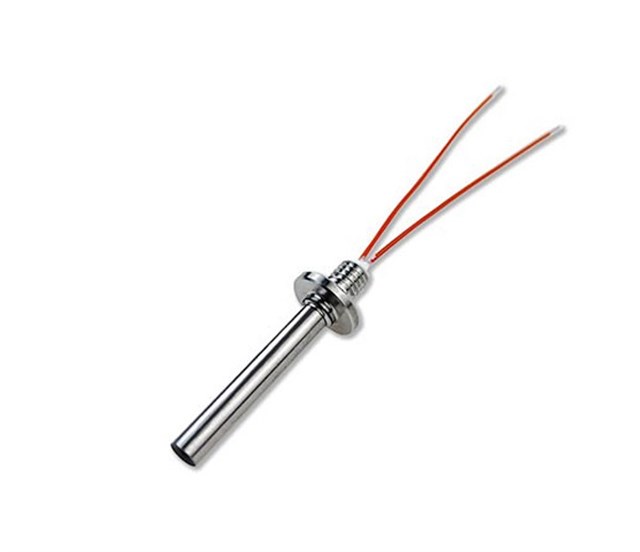

- Single threaded heat pipe with baffle
-
